VISTA SYSTEM
The system is composed of a series of TruSt80 vertical uprights, whose center distance varies depending on the format of the slab and the loads to which it is subjected. On these, a clip from the AM4 series is secured, using self-drilling screws or blind rivets, made of Aisi 430 harmonic steel and which can be painted with RAL color or with the color of the tile itself (in order to limit its visibility) . This clip has four arms, inside which the tile is housed, so that it is perfectly secured to the structure. Clips from the AM2 series are used to anchor the bottom and top slabs.
This system uses the following components:

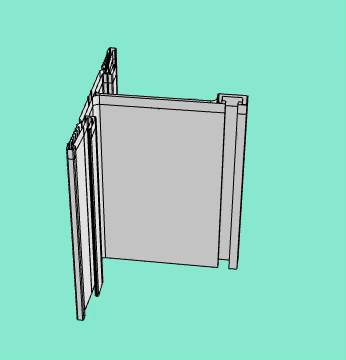

TruSt80 profile Extruded profile in raw 6060 T5 aluminum alloy.

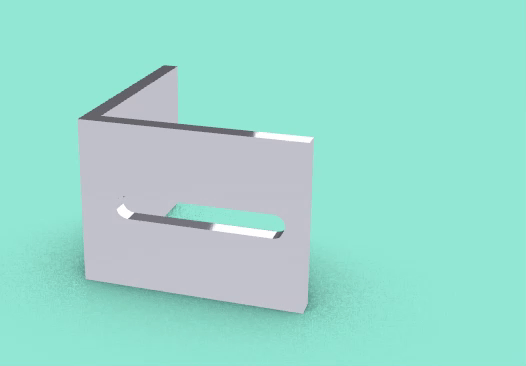

St80 bracket St80 support bracket obtained from the extrusion of raw aluminum alloy 6060 T5.

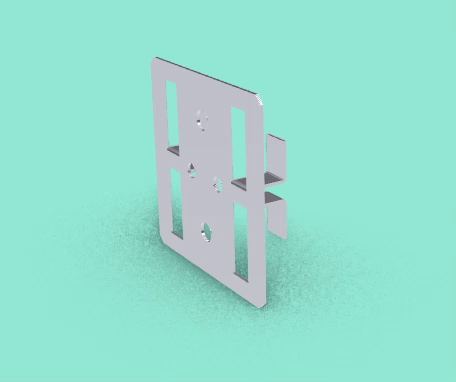

AM4.1 hooks AM4.1 fixing hooks in AISI 430 stainless steel.

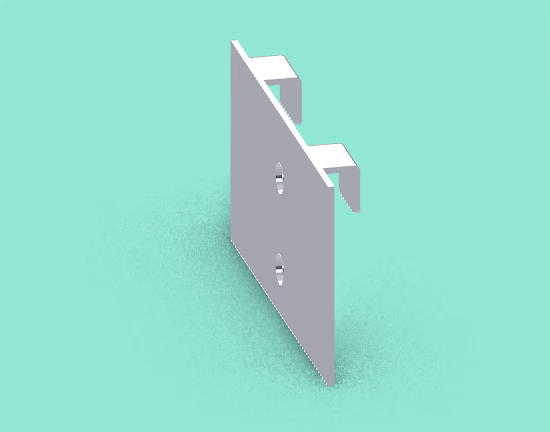

Hooks AM2.1 AM2.1 fixing hooks in AISI 430 stainless steel.
